35r/Min 159mm Y Type Inner Mounted Pipe Beveling Machine

Product Categories
Zhejiang Wellnit Mechanical Technology Co.,Ltd
Contact Now

35r/Min 159mm Y Type Inner Mounted Pipe Beveling Machine

  • 1
  • 2

Brand Name : Wellnit

Model Number : ISE-159

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 sets

Payment Terms : T/T

Supply Ability : 100SETS PER DAY

Delivery Time : 2-7DAYS

Packaging Details : Plywood Box

Material : Metal

Working Range : 65-159mm

Operation Type : Electric,penumatic

wall thickness : bellow 20mm

Rotation speed : 35r/min

Industry suit : pipeline project

too bits degree : 30 37.5 45 15 0degree

Power : 220V/380V/50HZ

Contact Now

ISE-159 Internal Expansion Electrical Pipe Beveling Milling Chamfering Machine WELLNIT

Production Description

The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.


Advantages:

  • Lighter weight,minimal radial space,Easy to operate.
  • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
  • Driveing Type:Electric-ISE,Pneumatic-ISP.
  • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
  • Angle:Beveling angle as per your required.

Characteristic:

  • Cold Cutting and Beveling improves safety
  • Cutting and Beveling simultaneous
  • Split Frame: easy mounted on pipeline
  • Tools feed automatically
  • Fast, Precision, On-site Beveling
  • Minimal Axial and Radial clearance
  • Light weight and compact design
  • Easy set-up & Operation
  • Electric or Pneumatic or Hydraulic driven
  • Machining heavy-wall pipe from 3/4” up to 56”

Applications:

  • Oil & Gas
  • Power Plant
  • Chemical Plant
  • Nuclear Power
  • Process Plant & Fabrication
  • Ship Building & Repair

Specifications:

  • Drive Options: Pneumatic, Hydraulic, and Electric
  • Air requirement: 1500L-3000L Per minute 0.6/0.7Mpa
  • Hydraulic requirement: 2-60L per minute 12.5Mpa
  • Electric requirement:220-240V 1PH 50/60HZ
  • Feed mode: Star wheel, automatically
  • Feed rate: Fixed 0.08mm per circle
  • Packaging: Plywood case

Tech specification:

Model Working Range(ID OD) Wall Thickness (mm) Rotation Speed(r/min)
ISE-30 Φ16-28 Φ19-38 ≤15 60
ISE-80 Φ28-76 Φ32-89 ≤15 55
ISE-120 Φ40-110 Φ48-120 ≤15 38
ISE-159 Φ65-159 Φ72-168 ≤20 35
ISE-252-1 Φ80-240 Φ90-273 ≤20 16
ISE-252-2 Φ80-240 ≤75 16
ISE-352-1 Φ150-330 Φ160-356 ≤20 14
ISE-352-2 Φ150-330 ≤75 14
ISE-426-1 Φ250-410 Φ260-430 ≤20 12
ISE-426-2 Φ250-410 ≤75 12
ISE-630-1 Φ300-600 Φ320-630 ≤20 10
ISE-630-2 Φ300-600 ≤75 10
ISE-850-1 Φ590-790 Φ610-850 ≤20 9
ISE-850-2 Φ590-790 ≤75 9

Machine operation type :

35r/Min 159mm Y Type Inner Mounted Pipe Beveling Machine35r/Min 159mm Y Type Inner Mounted Pipe Beveling Machine35r/Min 159mm Y Type Inner Mounted Pipe Beveling Machine

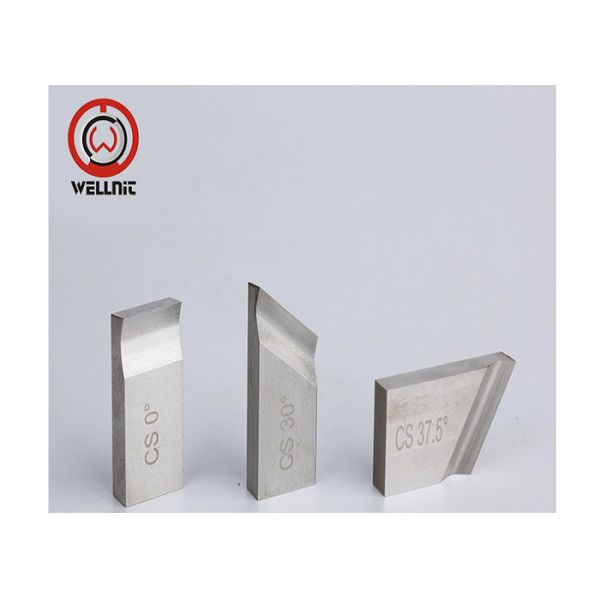

Tool bits :

35r/Min 159mm Y Type Inner Mounted Pipe Beveling Machine

Machine on site:

35r/Min 159mm Y Type Inner Mounted Pipe Beveling Machine

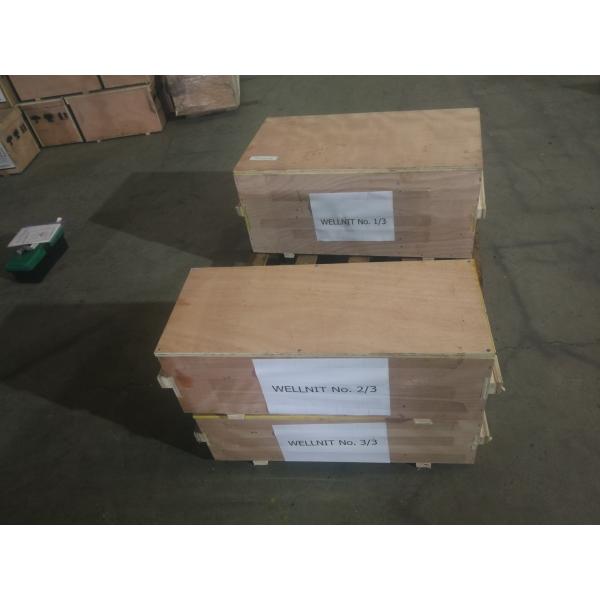

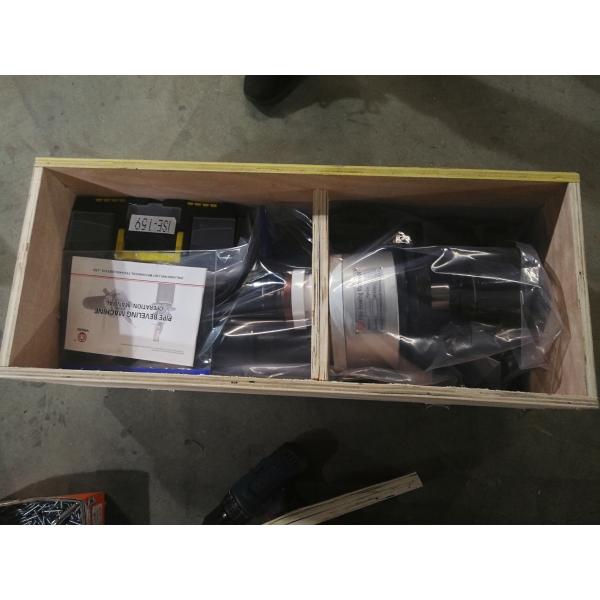

Packing box:

35r/Min 159mm Y Type Inner Mounted Pipe Beveling Machine35r/Min 159mm Y Type Inner Mounted Pipe Beveling Machine

FAQ:

Q: How can you guarantee the Good Quality we received?

A :Firstly, We have QC department for Quality control from Raw material till finished products. Secondly, We will do Inpsection during production and after Production. Thirdly, All our products will be tested before packing and sending out. We will send Inspection or testing video if customer not coming for checking personly.

Q: What about warrenty?

All our Products having 1 year warrenty and Life-Long Maintenance. We will provide you with free technical support.

Q: Do you provide any help regarding Products Operation?

A: All machines within products introduction, Manuals in English which is having all the operation suggestions and Maintenance proposals during using. Meanwhile, We could also support you with other way, Like provide you Video, Show and teach you while you are in our factory or Our engineers in your factory.

Q: Can I get Spare Parts?

A: We will enclose some quick wear parts with your order , As well some needed tools for this machine which is free will be send together wtih your Order. We have all spare parts drawing within the Manual. You could just tell us your spare parts No. In future. We could support you all the way.

Q: How Can I get more details about this machine or silimars?

A: Pls write down your questions and requirements in to below inquiry box. We will check and reply you by Email or Phone in 8 Hours.

35r/Min 159mm Y Type Inner Mounted Pipe Beveling Machine

Order Guide

Before you place order to us, please let us know the following information:

  • Choose the right Model

  • Confirm your electric power supply ( Voltage, frequency and phase)

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed

  • If the pipe wall thickness more than 30mm, inform us in advance (Important)
